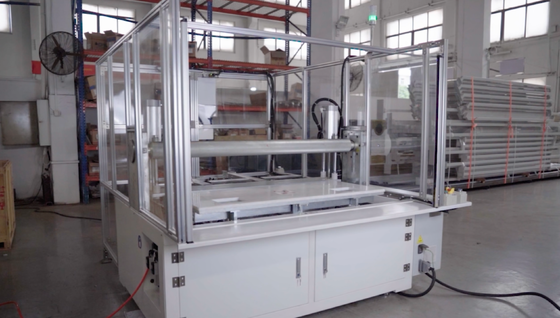

Air conditioner condenser bending machine

1.Applicable product range: L‑shaped condensers for 1‑3P outdoor air conditioner units.

2.Bending radius: R60, R76, R89, etc.

3.Workpiece thickness: 0 – 54.6 mm.

4.Fin pitch: ≤ 1.6 mm.

5.Max. workpiece width: 1500 mm.

6.Max. workpiece length: 1500 mm.

7.Clamping opening / stroke: 200 mm.

8.Bending angle: 0 – 120°.

9.Automatic cycle time: ≤ 20 s.

I. Equipment Purpose
1.This equipment is a dedicated CNC bending machine designed for air conditioner condensers.
2.It adopts a full servo CNC control system.
3.It is suitable for copper-tube and aluminum-fin type condenser cores used in air-conditioning heat exchangers.
4.The machine bends straight condenser cores into an L-shape, meeting the compact assembly layout requirements of French-style air conditioners.
5.It complies with the production process requirements of French air conditioner manufacturers and is integrated into the production line for outdoor unit heat exchangers.
6.The entire machine meets EU CE safety standards and is adapted to French industrial electrical specifications.
II. Main Advantages
1.All electrical components and safety protection systems comply with CE certification standards, meeting the market access requirements for France. The operator interface supports bilingual switching between French and English.
2.With servo-assisted follow-up bending technology, the fins remain neatly arranged after bending, copper tubes are free from deformation, and the finished product yield rate is high.
3.Programs can be recalled with one touch, and product parameter changeover is simple, making the machine well-suited for flexible production of multiple models in French factories.
