| High Light: | industrial automation Robot,assembly line robot |
||
|---|---|---|---|
Quick Detail:

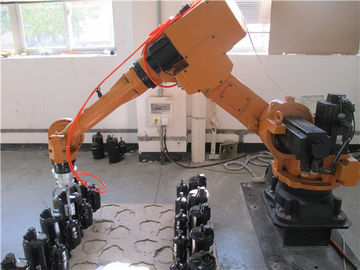

The robot body is made of high-strength materials.The arms are mechanically balanced and can be applied in harsh working condition.
1.All the business of Kinte is international and abroad only.
2.We have a large team and we provide one-station service
1.We provide one-station service
2.What you need is a thought then we make it come true.
3.We have a big team,we are always ready to go for installation and maintenance and training.
4.We have many abroad experience.
Applications:
The robot body is made of high-strength materials for transport,it can be used on production line.
Specifications:
|
Type
|
RB08 |
RB20 |
RB50 |
|||||
|
Degree of Freedom |
6 |
6 |
6 |
|||||
|
Drive System |
AC servo motor |
AC servo motor |
AC servo motor |
|||||
|
Maximum Load Capacity |
8KG |
20KG |
3KG |
|||||
|
Position Repeatability |
±0.05mm |
±0.08mm |
±0.07mm |
|||||
|
Movement Range |
J1 Axis |
±170° |
±170° |
±180° |
||||
|
J2 Axis |
120°— -85° |
133°— -95° |
130°— -90° |
|||||
|
J3 Axis |
85°— -170° |
76°— -166° |
280°— -160° |
|||||
|
J4 Axis |
±180° |
±180° |
±360° |
|||||
|
J5 Axis |
±135° |
±133° |
±120° |
|||||
|
J6 Axis |
±360° |
±360° |
±360° |
|||||
|
Rated Speed |
J1 Axis |
2.09rad/s,120°/s |
1.90rad/s,109°/s |
1.23rad/s,70°/s |
||||
|
J2 Axis |
2.09rad/s,120°/s |
1.30rad/s,74.5°/s |
1.12rad/s,64°/s |
|||||
|
J3 Axis |
2.09rad/s,120°/s |
1.74rad/s,100°/s |
0.90rad/s,51°/s |
|||||
|
J4 Axis |
3.93rad/s,225°/s |
3.93rad/s,225°/s |
2.51rad/s,144°/s |
|||||
|
J5 Axis |
2.53rad/s,145°/s |
2.56rad/s,147°/s |
2.92rad/s,167°/s |
|||||
|
J6 Axis |
5.24rad/s,300°/s |
5.16rad/s,296°/s |
5.10rad/s,292°/s |
|||||
|
Environment Condition |
Temperature |
0-45℃ |
||||||
|
Humidity |
20-80%(no condensation) |
|||||||
|
Other |
1.Keep away from flammable,explosive and corrosive gases and liquid; |
|||||||
|
Installation Posture |
Installed on floor |
|||||||
|
Electric Cabinet Weight |
125KG |
|||||||
|
Robot Body Weight |
75KG |
180KG |
245KG |
600KG |
||||
|
Unit Price/RMB |
80000 |
110000 |
135000 |
220000 |
||||
|
|
||||||||
Competitive Advantage:
Programming Pendant
Large HD color screen
6.4” color LED display;high sensitive touch screen.
Intuitive operation interface
The vivid icon helps the user to understand the operation.
Function Key for simple operation
The user can select the desired functions in the memory and set them to the function keys.
Easy Operation
The programming pendant provides user-friendly man-machine conversation window which is concise but resourceful.
High Performance with Low Cost
The motor,driver and control system used in the robot are all self-developed,which greatly reduces the cost.
High Efficiency
Adopting the domestic advanced GSK-RC control system,the robot can optimize the acceleration/deceleration according to actual load and shorten the operation cycle to the greatest extent.
High Reliability
Through the internal service information system,the robot monitors the motion and load,and optimizes the service requirements to ensure to continue working longer.
