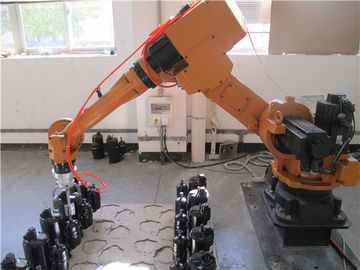

Automatic Industrial Transportation Robot With Function Key Easy Operation

Automatic Industrial Transportation Robot With Function Key Easy Operation
Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation Automatic Industrial Transportation Robot With Function Key Easy Operation

Large Image :  Automatic Industrial Transportation Robot With Function Key Easy Operation

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Kinte
Certification: Certificate of conformity of quality management system certification
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customized
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: TT,L/C
Supply Ability: Customized
Detailed Product Description
High Light:

small industrial robots

,

assembly line robot

Automatic Industrial Transportation Robot With Function Key Easy Operation





Quick Detail:



The robot body is made of high-strength materials.The arms are mechanically balanced and can be applied in harsh working condition.

1. All the business of Kinte is international and abroad only.

2. We have a large team and we provide one-station service

3. We provide one-station service

4. What you need is a thought then we make it come true.

5. We have a big team,we are always ready to go for installation and maintenance and training.

6. We have many abroad experience.



Applications:

The robot body is made of high-strength materials for transport,it can be used on production line.



Specifications:

            Type

  Automatic Industrial Transportation Robot With Function Key Easy Operation 0 Item

RB08

RB20

RB50



Degree of Freedom

6

6

6



Drive System

AC servo motor

AC servo motor

AC servo motor



Maximum Load Capacity

8KG

20KG

3KG



Position Repeatability

±0.05mm

±0.08mm

±0.07mm



Movement Range

J1 Axis

±170°

±170°

±180°



J2 Axis

120°— -85°

133°— -95°

130°— -90°



J3 Axis

85°— -170°

76°— -166°

280°— -160°



J4 Axis

±180°

±180°

±360°



J5 Axis

±135°

±133°

±120°



J6 Axis

±360°

±360°

±360°



Rated Speed

J1 Axis

2.09rad/s,120°/s

1.90rad/s,109°/s

1.23rad/s,70°/s



J2 Axis

2.09rad/s,120°/s

1.30rad/s,74.5°/s

1.12rad/s,64°/s



J3 Axis

2.09rad/s,120°/s

1.74rad/s,100°/s

0.90rad/s,51°/s



J4 Axis

3.93rad/s,225°/s

3.93rad/s,225°/s

2.51rad/s,144°/s



J5 Axis

2.53rad/s,145°/s

2.56rad/s,147°/s

2.92rad/s,167°/s



J6 Axis

5.24rad/s,300°/s

5.16rad/s,296°/s

5.10rad/s,292°/s



Environment Condition

Temperature

0-45℃



Humidity

20-80%(no condensation)



Other

1.Keep away from flammable,explosive and corrosive gases and liquid;
2.Avoid water,oil and dust;
3.Be far away from electric appliance noise source(plasma)





Installation Posture

Installed on floor



Electric Cabinet Weight

125KG



Robot Body Weight

75KG

180KG

245KG

600KG



Unit Price/RMB
(for reference)

80000

110000

135000

220000








Competitive Advantage:

Programming Pendant

Large HD color screen

6.4” color LED display;high sensitive touch screen.



Intuitive operation interface

The vivid icon helps the user to understand the operation.



Function Key for simple operation

The user can select the desired functions in the memory and set them to the function keys.



Easy Operation

The programming pendant provides user-friendly man-machine conversation window which is concise but resourceful.



High Performance with Low Cost

The motor,driver and control system used in the robot are all self-developed,which greatly reduces the cost.



High Efficiency

Adopting the domestic advanced GSK-RC control system,the robot can optimize the acceleration/deceleration according to actual load and shorten the operation cycle to the greatest extent.



High Reliability

Through the internal service information system,the robot monitors the motion and load,and optimizes the service requirements to ensure to continue working longer.



Automatic Industrial Transportation Robot With Function Key Easy Operation 1

Automatic Industrial Transportation Robot With Function Key Easy Operation 2
