Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen

Good quality Automotive Assembly Line for sales
Good quality Automotive Assembly Line for sales
They have supplied us one full assembly line for our freezer production.We strongly recommend them for such jobs at your godrej plants.

—— Harmeet Singh

I'm Online Chat Now

Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen

China Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier
Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen supplier

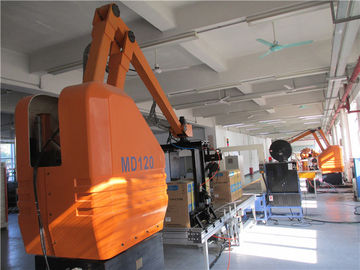

Large Image :  Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Kinte
Certification: Certificate of conformity of quality management system certification
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: TT,L/C
Supply Ability: Customized
Contact Now
Detailed Product Description

Stacking Industrial Robot With Ac Servo Motor / High Sensitive Touch Screen



Quick Detail:

The robot body is made of high-strength materials.The arms are mechanically balanced and can be applied in harsh working condition.

  1. All the business of Kinte is international and abroad only.

      2. We have a large team and we provide one-station service

  1. We provide one-station service
  2. What you need is a thought then we make it come true.
  3. We have a big team,we are always ready to go for installation and maintenance and training.
  4. We have many abroad experience.



Description:

                Type                  Item

MD120

MD200




Degree of Freedom

4

4



Drive System

AC servo motor

AC servo motor



Maximum Load Capacity

120KG

200KG



Position Repeatability

±0.1mm

±0.1mm



Motion Ability

1000times/hour

1000times/hour



Power Consumption

6kw

8kw



Movement Range

J1 Axis(Waist Basement)

±165°

±165°



J2 Axis(Front-Rear)

1500mm

1500mm



J3 Axis(Up and Down)

2300mm

2300mm



J4 Axis(Wrist)

±360°

±360°



Environment Condition

Temperature

0-45℃



Humidity

20-80%(no condensation)



Other

1.Keep away from flammable,explosive and corrosive gases and liquid;
2.Avoid water,oil and dust;
3.Be far away from electric appliance noise source(plasma)





Installation Posture

Installed on floor



Electric Cabinet Weight

125KG



Robot Body Weight

1300KG

1500KG



Unit Price/RMB

200000

230000





Applications:



The robot body is made of high-strength materials.The arms are mechanically balanced and can be applied in harsh working condition.



Competitive Advantage:

Programming Pendant

Large HD color screen

6.4” color LED display;high sensitive touch screen.



Intuitive operation interface

The vivid icon helps the user to understand the operation.



Function Key for simple operation

The user can select the desired functions in the memory and set them to the function keys.



Easy Operation

The programming pendant provides user-friendly man-machine conversation window which is concise but resourceful.



High Performance with Low Cost

The motor,driver and control system used in the robot are all self-developed,which greatly reduces the cost.



High Efficiency

Adopting the domestic advanced GSK-RC control system,the robot can optimize the acceleration/deceleration according to actual load and shorten the operation cycle to the greatest extent.



High Reliability

Through the internal service information system,the robot monitors the motion and load,and optimizes the service requirements to ensure to continue working longer.
